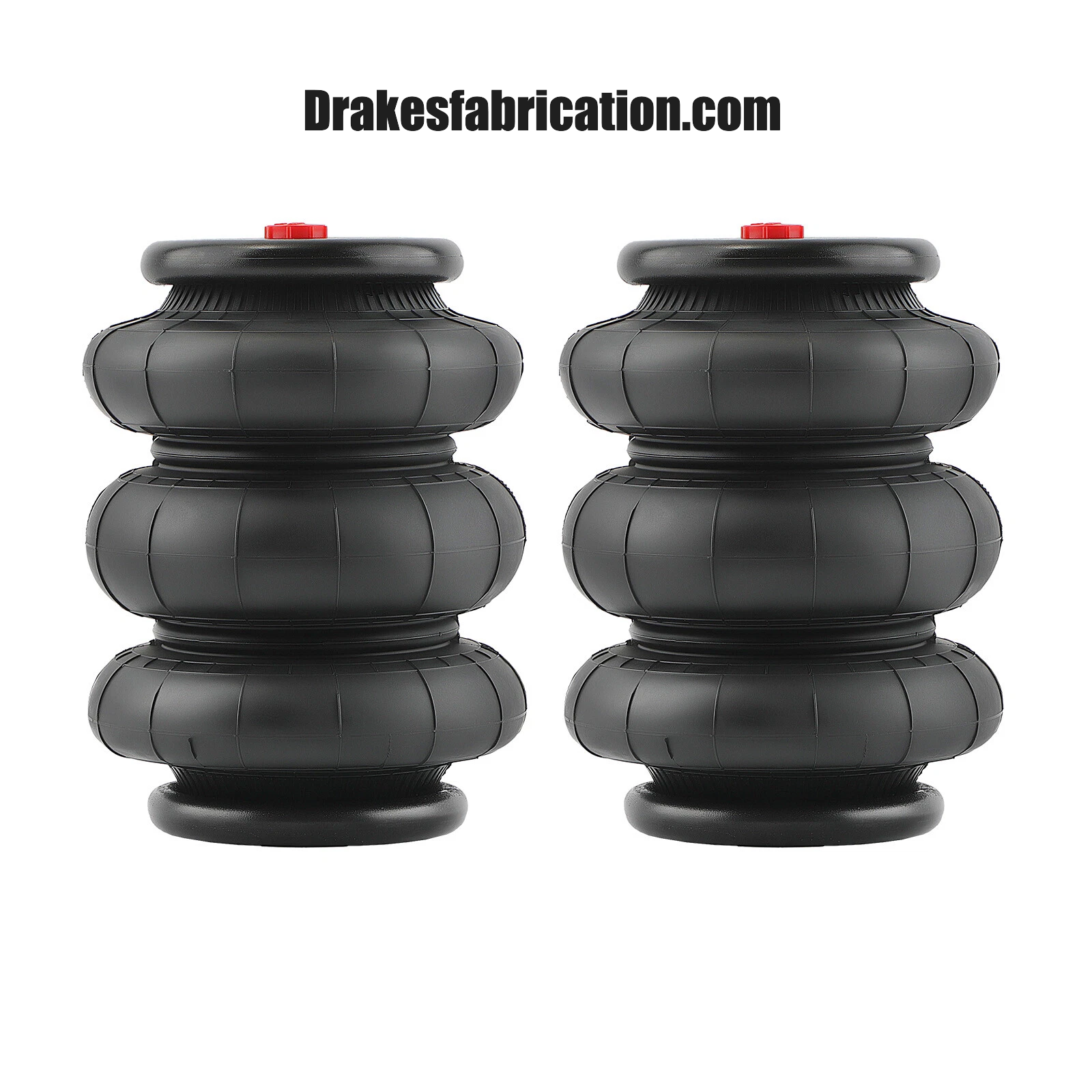

Triple Bellow 2600 air bags

• Stroke/Closed: 220 mm
• Max height: 330 mm
• Min height: 110 mm
• Design Height: 250 mm/9.8"
• Top plate diameter: 131 mm
• Airport size: 1/2-14NPT Single Port
• All mounting holes size:3/8-16UNC
• Independent Test Pressure: at least 290psi
• Recommended working range: 0psi - 170psi
• Air spring bag capacity：2600LBS/Side

Features:

• OEM Product: Easy to install
• Test more than 5,000,000 times: Durable and Safe
• 24 hours air tightness test ≤0.02MPa: Air Tightness Guarantee
• Temperature Range ≥ -40℃/ ≤ 70℃: Premium Natural Rubber Material
• Enable vehicles to cope with uneven or heavy loads
• Helps maintain control of loaded vehicle

Item Specifications:

• Condition: New
• Part Type: Air Suspension Spring
• Placement on Vehicle: Rear
• Quantity: 2 pieces (for rear right and left side)
• Length, width and height (cm): 40*29*22 cm
• Weight: 5.8 Kg
